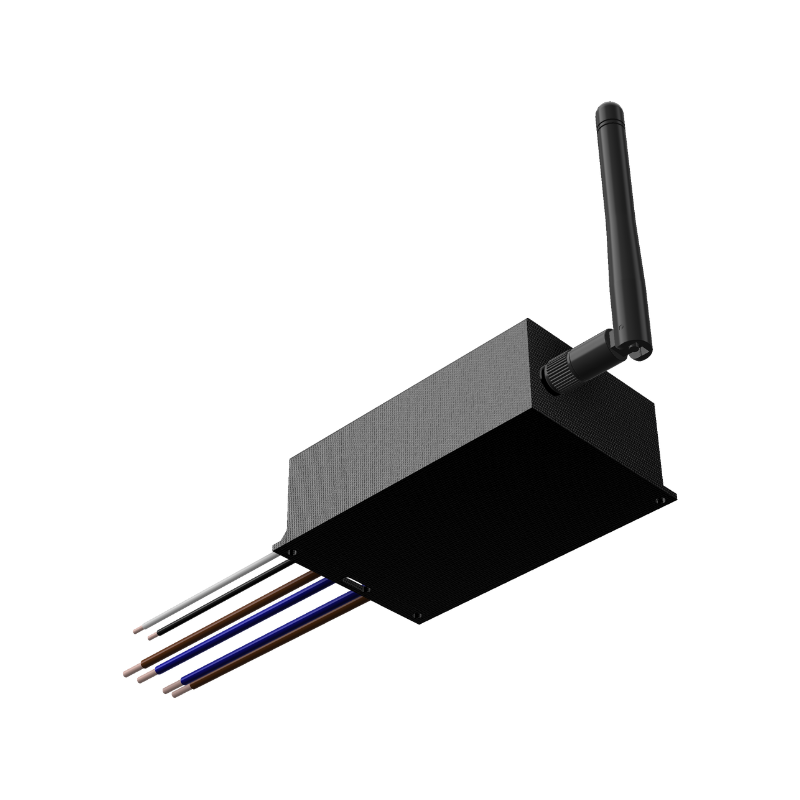

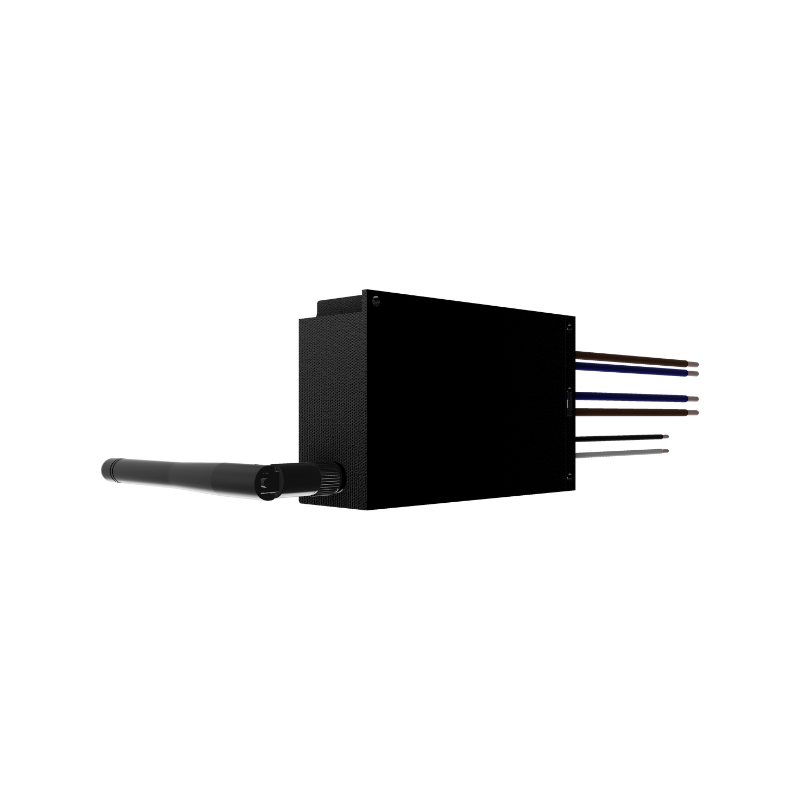

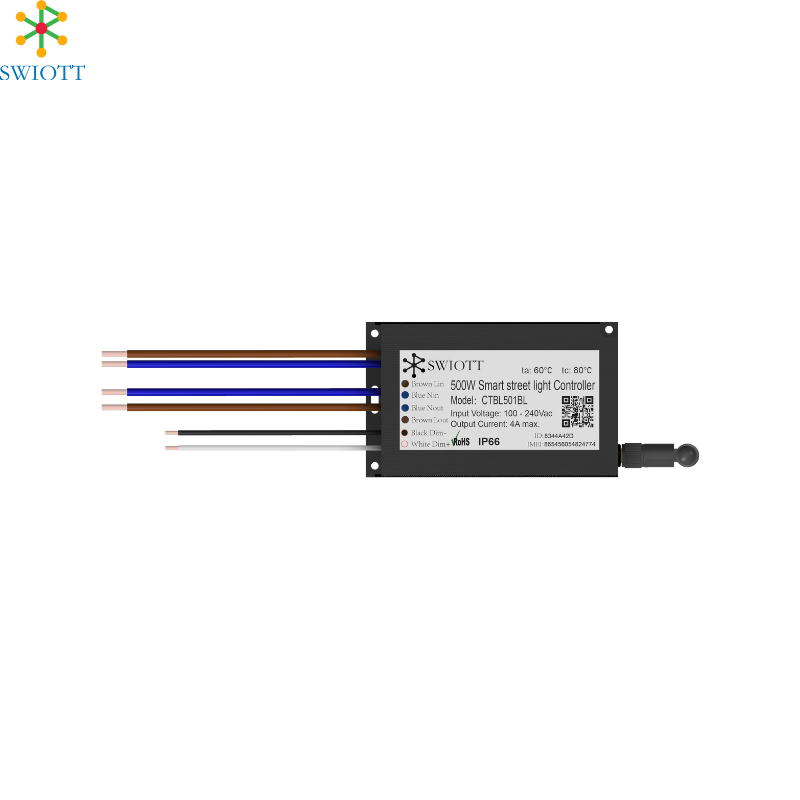

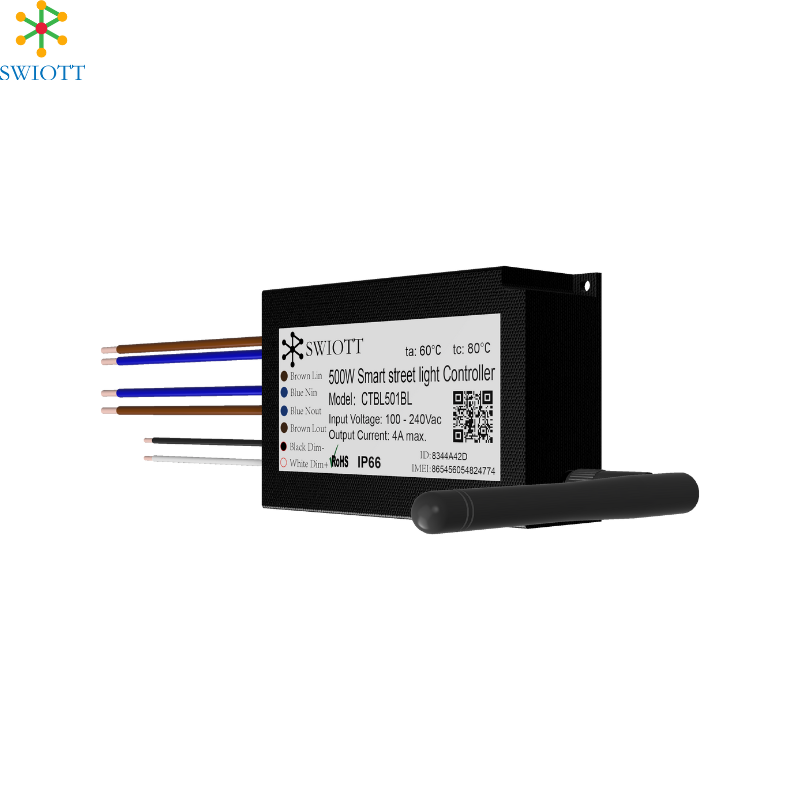

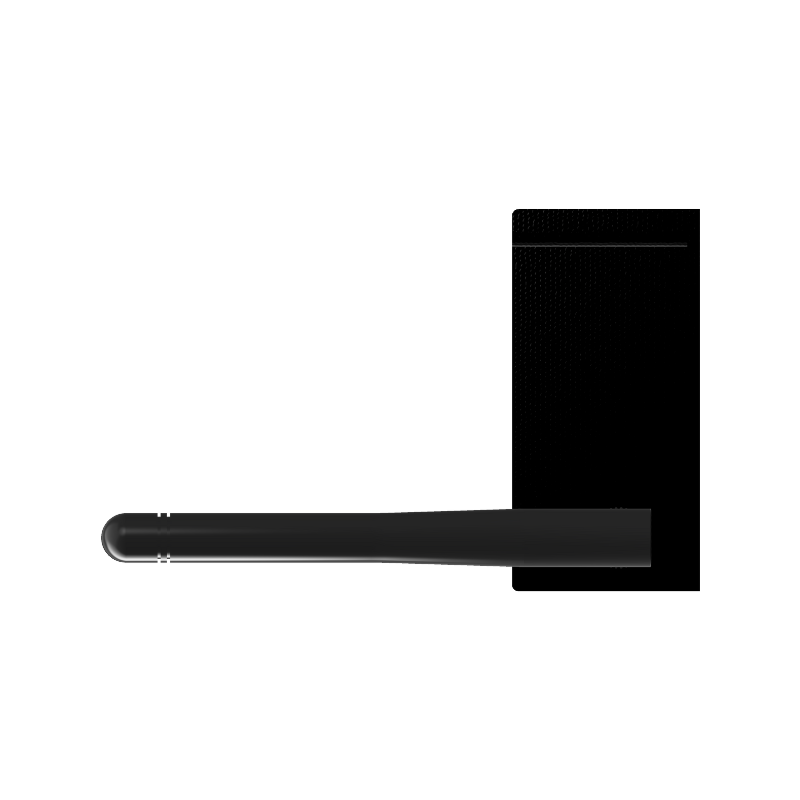

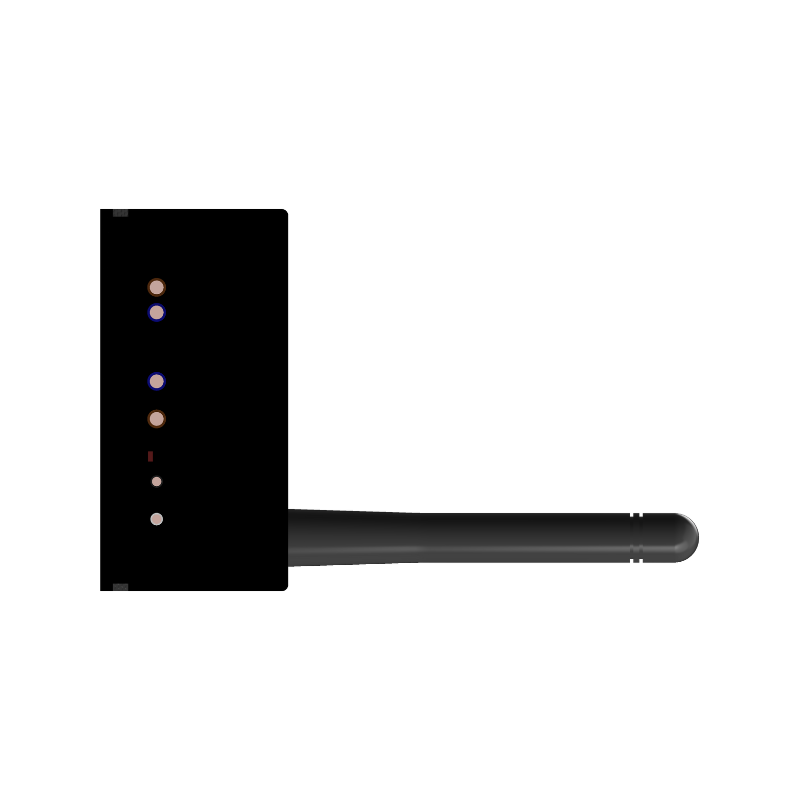

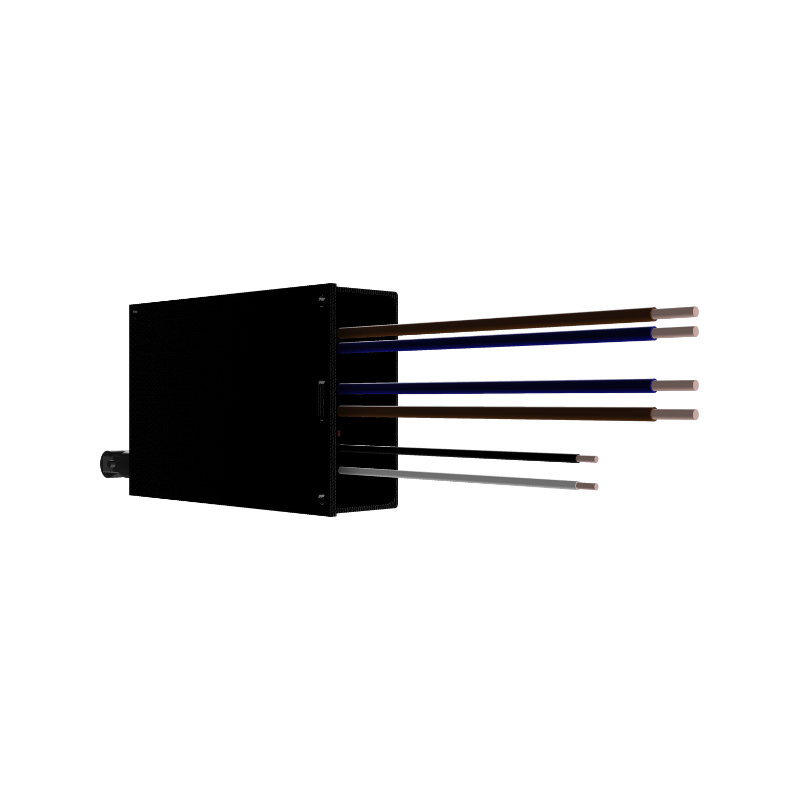

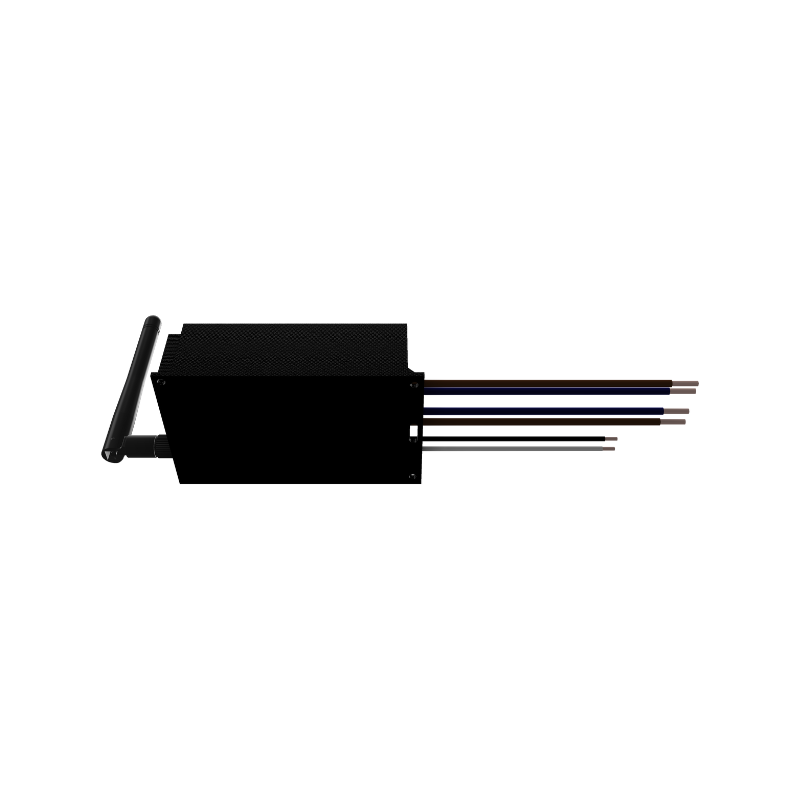

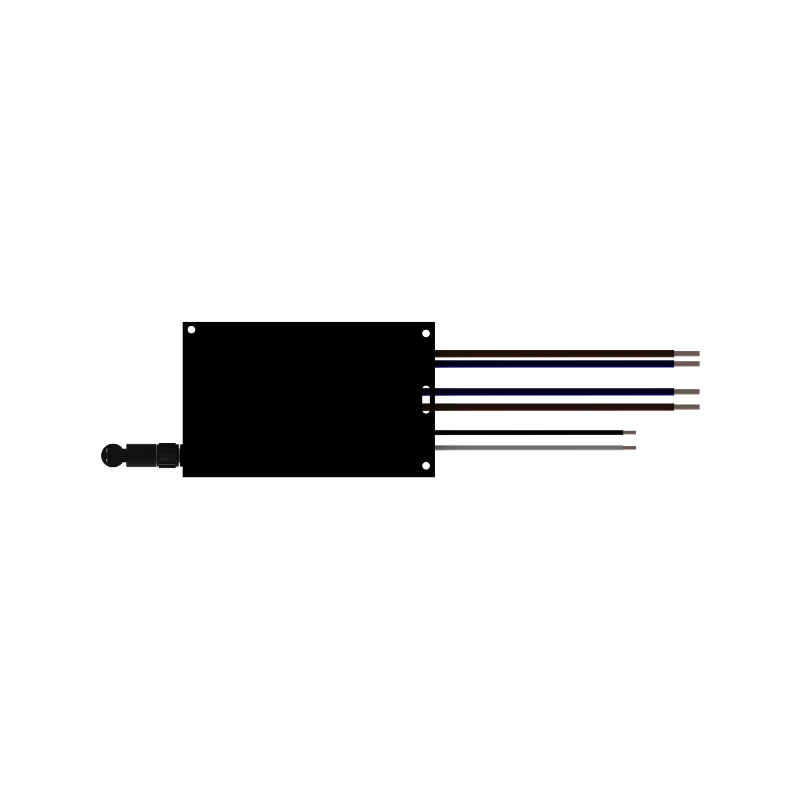

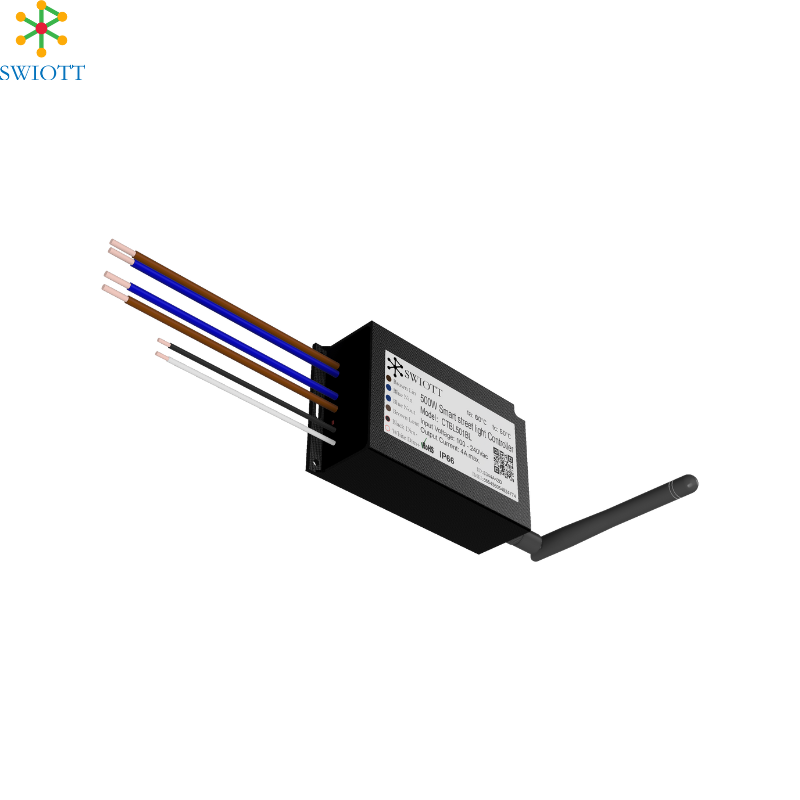

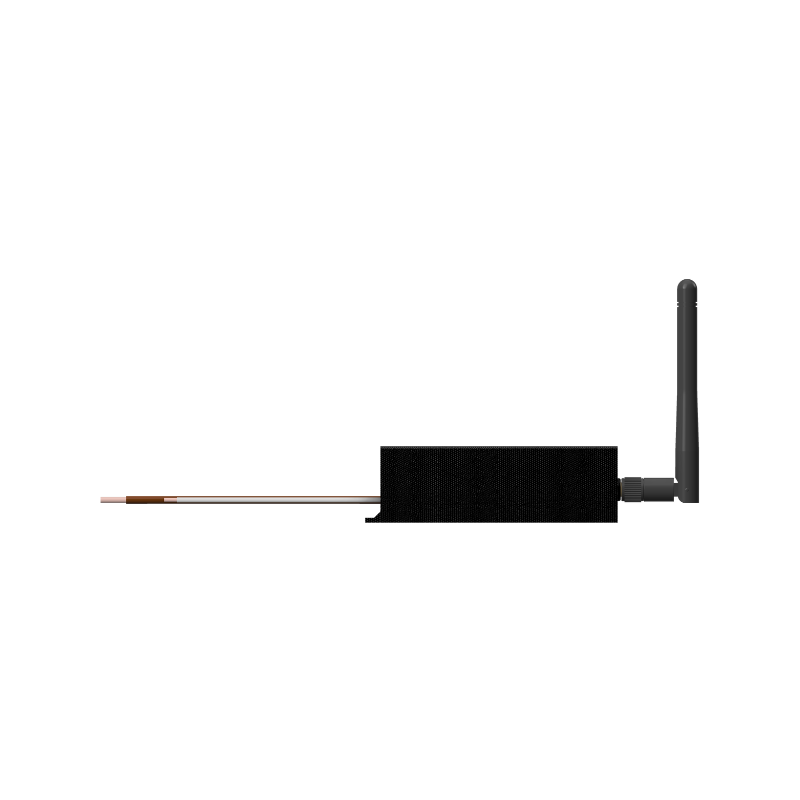

CTBL501 Wired NB-IoT Smart Street Light Controller

CTBL501 NB-IoT Smart Street Light Controller: A Holistic Solution for Intelligent Illumination

I.Product Overview

• The CTBL501 is an NB-IoT-enabled smart street light controller integrating 4G LTE communication, IP66 protection, high-precision energy metering, and multi-protocol dimming capabilities.

• Designed for urban roads, park landscapes, and industrial zones, it delivers end-to-end intelligent lighting management from hardware to cloud.

• Certified to CE, FCC, and CB standards, with a 5-year warranty and 60,000-hour lifespan, it redefines reliability in lighting control.

II.Core Features

1. Intelligent Dimming: From Scene Adaptation to Energy Transparency
   Multi-Protocol Compatibility: Supports 0-10V, DALI, and PWM (IEC 60929-compliant), compatible with LED drivers, high-pressure sodium lamps, and metal halide lamps.
   Energy Monitoring: Built-in metering chip (≤2% accuracy) tracks voltage, current, and power factor.   Data is uploaded via 4G for cloud-based hourly/daily/monthly reports.
2. Stable Communication: 4G LTE + Redundant Safeguards
   4G LTE Cat-1: Covers B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 bands for global deployment.
   Key Technologies:
   Automatic Retransmission: Ensures 100% command delivery in case of packet loss.
   Heartbeat Mechanism: Sends 5-minute status updates to the cloud, with auto-reconnection within 30 seconds after disconnection.
   2G GSM Backup: Ensures connectivity in remote areas.
3. Robust Protection: From Extreme Conditions to Predictive Maintenance
   IP66 Rating: Operates in temperatures from -40°C to 80°C, with UV resistance.
   8-Layer Safety: Real-time alerts for overload, short circuit, overvoltage, undervoltage, overtemperature, pole tilt, communication failure, and dimming signal anomalies, with meter-level fault localization.

III.Technical Advantages

1. Easy Installation: Three-Step Setup
   Toolkit: Includes screwdriver, terminals, and tape—no expert electrician required.
   Process:
   Mounting: 3-minute guide rail installation inside the pole.
   Wiring: Color-coded AC input/output (brown) and neutral lines (blue), supporting hot-swapping.
   Networking: SIM card insertion, QR code scanning, and 5-minute device pairing.

2. User Interface: Intuitive Control
   Web Dashboard:
   Real-Time Monitoring: Map view with green (normal) and red (fault) indicators.
   Dimming Strategies: Preset modes (e.g., "Midnight Mode," "Holiday Mode") with timer/light sensor integration.
   Fault Alerts: Dual-channel SMS/email notifications with audit trails.
   Analytics: Energy trends, failure rates, and dimming policy comparisons for municipal energy audits.



IV. Applications
1. Urban Roads: Safety Meets Efficiency
Strategy: Dim to 50% after 10 PM, 30% at 4 AM, with radar-triggered "car-in, lights-on" functionality.
2. Park Landscapes: Ambiance & Experience
Strategy: 80% brightness in plaza areas, PWM-driven "follow-the-person" dimming on pathways.
3. Industrial Zones: Safety & Cost Optimization
Strategy: Full power during shifts, 20% during downtime, with temperature sensors preventing equipment overheating.

V. User Value
1.             Municipal Authorities
Policy Compliance: Aligns with carbon neutrality goals and smart city ratings.
Data Assets: Accumulates energy and fault data for urban planning.
2.             Property Managers/Factories
ROI: 3-year payback period, with 60% cost reduction over 5 years.
Brand Enhancement: Demonstrates CSR commitment, improving public image.
3.             Contractors
Project Premium: 30% price advantage over traditional controllers.

CTBL501 NB-IoT Smart Street Light Controller—Pioneering lighting innovation with technology, turning every lamp into a nerve cell of the smart city.  Upgrade today to illuminate the future of intelligence.

FAQ

What communication options are available with the CTBL501 controller?

Our CTBL501 controller supports multi-band NB-IoT and 4G LTE Cat-1 cellular connectivity, ensuring global coverage. For redundancy, it includes a 2G GSM backup to maintain stable communication even in challenging environments. This makes it a reliable controller manufacturer choice for industrial applications.

Can the CTBL501 be customized to fit specific lighting protocols?

Yes, the CTBL501 supports multiple dimming protocols including 0-10V, DALI, and PWM, which comply with IEC 60929 standards. This flexibility allows us to provide a customized controller solution that integrates seamlessly with various LED lighting systems and meets your project requirements.

How straightforward is the installation and setup process for this LED controller?

We designed the CTBL501 for ease of installation: simply mount the device using the provided rail, follow color-coded wiring, insert the SIM card, and pair the device via QR code. This streamlined process minimizes on-site labor and speeds up deployment for your LED light controller needs.

What ongoing maintenance or monitoring features does the CTBL501 offer?

Our CTBL501 includes a web-based dashboard offering real-time energy data, dimming control, and fault alert notifications. With automatic command retransmission and heartbeat mechanisms, we ensure stable operation while providing you with detailed analytics for efficient maintenance and management.
