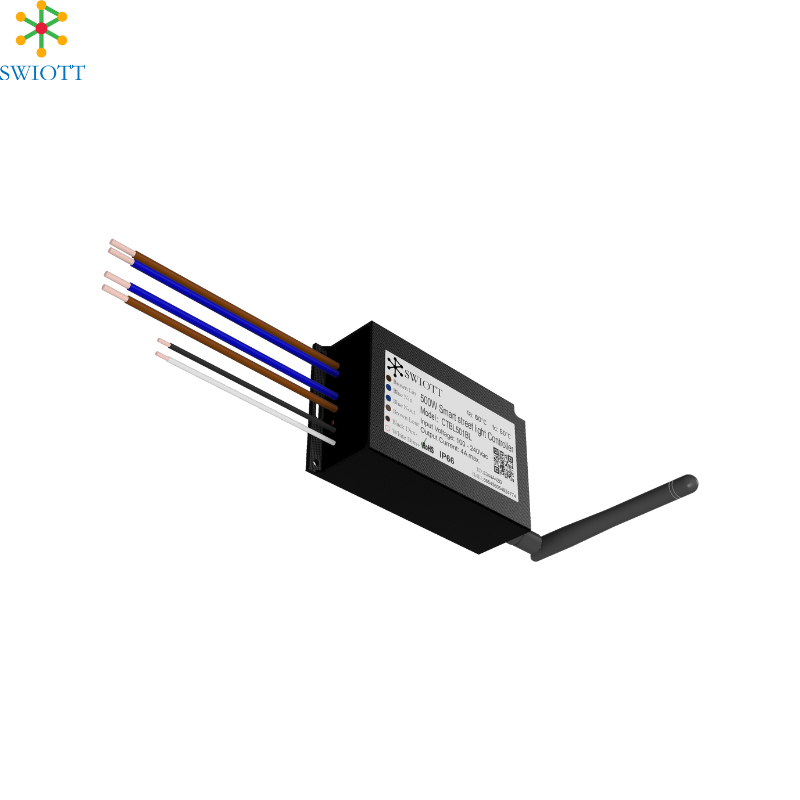

CTBL501 NB-IoT Smart Street Light Controller: A Holistic Solution for Intelligent Illumination

I.Product Overview

• The CTBL501 is an NB-IoT-enabled smart street light controller integrating 4G LTE communication, IP66 protection, high-precision energy metering, and multi-protocol dimming capabilities.

• Designed for urban roads, park landscapes, and industrial zones, it delivers end-to-end intelligent lighting management from hardware to cloud.

• Certified to CE, FCC, and CB standards, with a 5-year warranty and 60,000-hour lifespan, it redefines reliability in lighting control.

II.Core Features

1. Intelligent Dimming: From Scene Adaptation to Energy Transparency
   Multi-Protocol Compatibility: Supports 0-10V, DALI, and PWM (IEC 60929-compliant), compatible with LED drivers, high-pressure sodium lamps, and metal halide lamps.
   Energy Monitoring: Built-in metering chip (≤2% accuracy) tracks voltage, current, and power factor.   Data is uploaded via 4G for cloud-based hourly/daily/monthly reports.
2. Stable Communication: 4G LTE + Redundant Safeguards
   4G LTE Cat-1: Covers B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 bands for global deployment.
   Key Technologies:
   Automatic Retransmission: Ensures 100% command delivery in case of packet loss.
   Heartbeat Mechanism: Sends 5-minute status updates to the cloud, with auto-reconnection within 30 seconds after disconnection.
   2G GSM Backup: Ensures connectivity in remote areas.
3. Robust Protection: From Extreme Conditions to Predictive Maintenance
   IP66 Rating: Operates in temperatures from -40°C to 80°C, with UV resistance.
   8-Layer Safety: Real-time alerts for overload, short circuit, overvoltage, undervoltage, overtemperature, pole tilt, communication failure, and dimming signal anomalies, with meter-level fault localization.

III.Technical Advantages

1. Easy Installation: Three-Step Setup
   Toolkit: Includes screwdriver, terminals, and tape—no expert electrician required.
   Process:
   Mounting: 3-minute guide rail installation inside the pole.

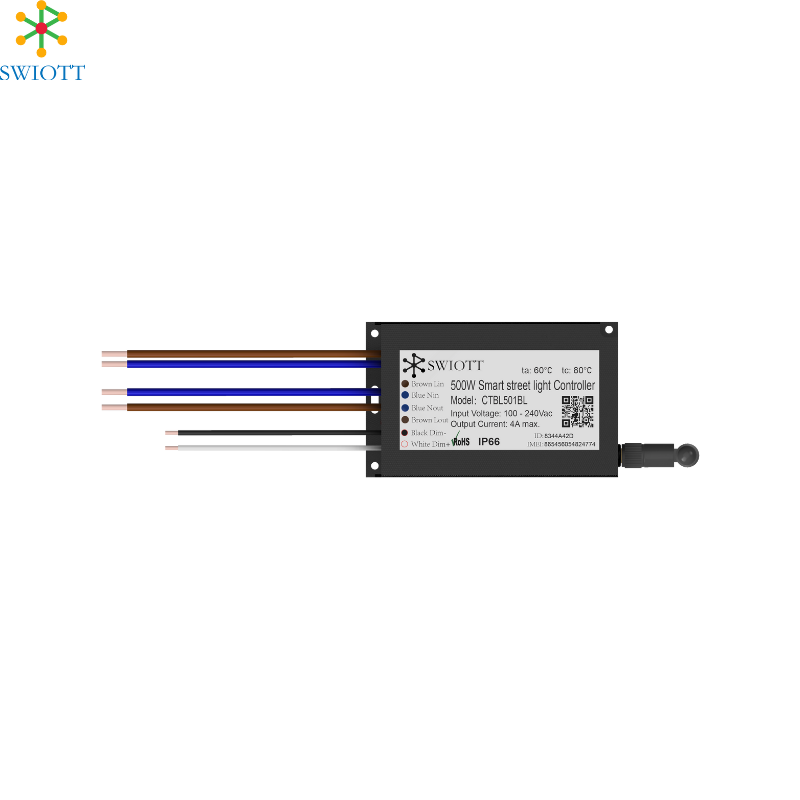

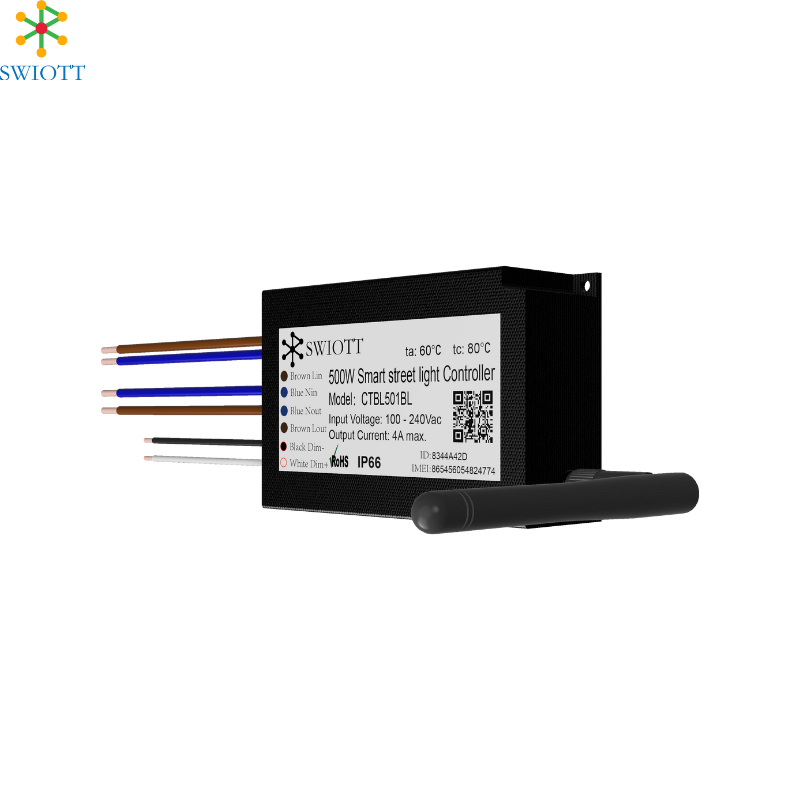

   Wiring: Color-coded AC input/output (brown) and neutral lines (blue), supporting hot-swapping.
   Networking: SIM card insertion, QR code scanning, and 5-minute device pairing.

2. User Interface: Intuitive Control
   Web Dashboard:
   Real-Time Monitoring: Map view with green (normal) and red (fault) indicators.
   Dimming Strategies: Preset modes (e.g., "Midnight Mode," "Holiday Mode") with timer/light sensor integration.
   Fault Alerts: Dual-channel SMS/email notifications with audit trails.
   Analytics: Energy trends, failure rates, and dimming policy comparisons for municipal energy audits.



IV. Applications
1. Urban Roads: Safety Meets Efficiency
Strategy: Dim to 50% after 10 PM, 30% at 4 AM, with radar-triggered "car-in, lights-on" functionality.
2. Park Landscapes: Ambiance & Experience
Strategy: 80% brightness in plaza areas, PWM-driven "follow-the-person" dimming on pathways.
3. Industrial Zones: Safety & Cost Optimization
Strategy: Full power during shifts, 20% during downtime, with temperature sensors preventing equipment overheating.

V. User Value
1.             Municipal Authorities
Policy Compliance: Aligns with carbon neutrality goals and smart city ratings.
Data Assets: Accumulates energy and fault data for urban planning.
2.             Property Managers/Factories
ROI: 3-year payback period, with 60% cost reduction over 5 years.
Brand Enhancement: Demonstrates CSR commitment, improving public image.
3.             Contractors
Project Premium: 30% price advantage over traditional controllers.

CTBL501 NB-IoT Smart Street Light Controller—Pioneering lighting innovation with technology, turning every lamp into a nerve cell of the smart city.  Upgrade today to illuminate the future of intelligence.
